Microcapsule Release
Flavor is arguably the most critical determinant of consumer acceptance in the food and beverage industry. It is the primary sensory driver that dictates whether a product will achieve commercial success or languish on the shelf. However, the biochemical reality of flavor compounds presents a continuous challenge for food scientists and manufacturers. The organic molecules that impart delightful sensory experiences—such as esters, aldehydes, ketones, and terpenes—are inherently highly volatile and chemically unstable. They are prone to rapid degradation when exposed to environmental stressors like light, thermal processing, oxygen, moisture, and extreme pH environments.
For manufacturers, this translates to a significant hurdle: how to ensure that the complex, carefully crafted flavor profile engineered in the laboratory remains perfectly intact from the production line to the moment of consumer consumption months later. This challenge necessitates advanced delivery systems, bringing the sophisticated science of microencapsulation to the forefront of modern flavor technology.
Microencapsulation is not merely a packaging technique; it is a fundamental physicochemical process that builds a microscopic barrier around sensitive flavor compounds. By isolating the active flavor ingredients within a protective matrix, manufacturers can significantly enhance stability, extend shelf life, mask undesirable off-notes (such as the intense bitterness of certain active functional ingredients), and orchestrate the precise, controlled release of flavors at the optimal moment of consumption. As consumer demand for clean labels, functional foods, and exotic sensory experiences grows, mastering microencapsulation has become essential. This comprehensive guide explores the principles, materials, technologies, and applications of flavor microencapsulation, providing a technical blueprint for leveraging this technology to elevate food and beverage formulations.
To fully grasp the utility of microencapsulation, one must first understand its structural mechanics. At its core, microencapsulation is the process by which tiny particles or droplets of a solid, liquid, or gas are surrounded by a continuous coating or embedded within a homogeneous matrix to produce capsules in the micrometer to millimeter range (typically 1 to 1000 µm).

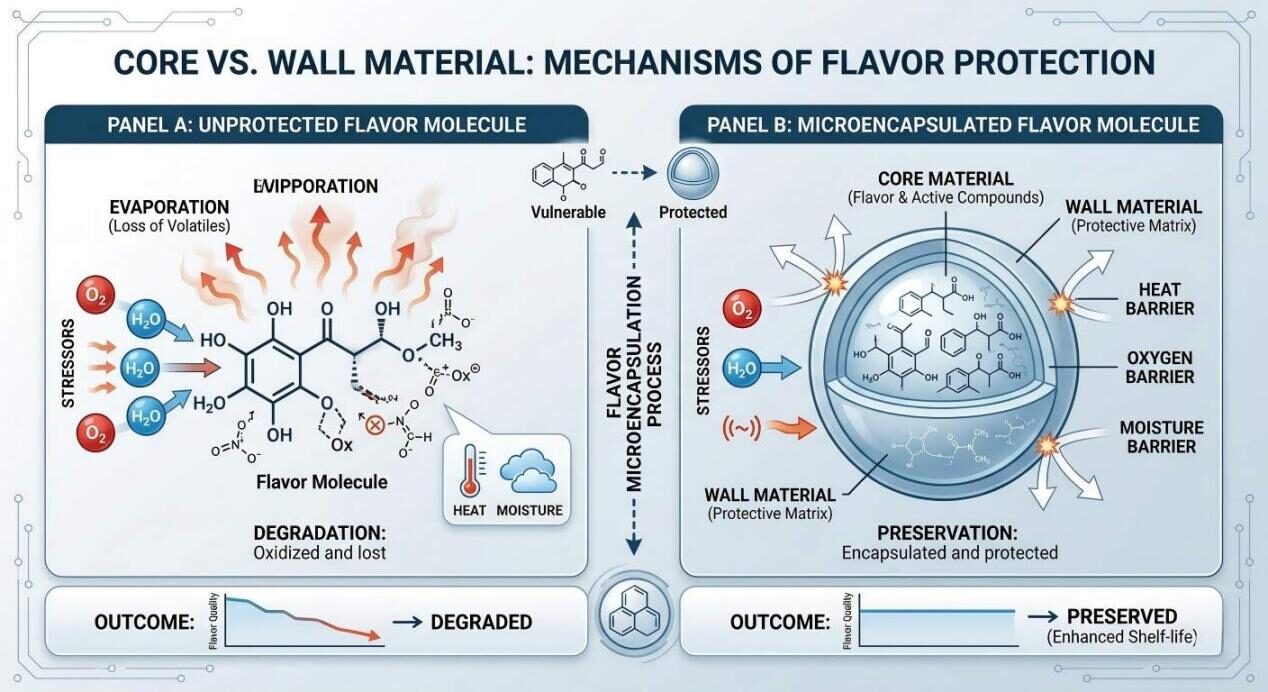

The architecture of a microcapsule generally consists of two primary components:
Microcapsules can take several morphological forms depending on the manufacturing process and the materials used.
The physical state of the microcapsule—specifically its glass transition temperature (Tg)—is a critical thermodynamic parameter. The wall material must be maintained in a “glassy” (amorphous solid) state rather than a “rubbery” state during storage. In the glassy state, molecular mobility is restricted, virtually halting the diffusion of oxygen inward and the diffusion of volatile flavor molecules outward. If the ambient temperature or moisture content exceeds the critical threshold, the matrix transitions to a rubbery state, leading to structural collapse, oxidation, and rapid flavor loss. Understanding these dynamics is essential when From Lab Bench to Market Shelf: Navigating the Commercialization of New Flavors, as the transition from controlled lab environments to fluctuating retail conditions heavily tests the thermodynamic stability of the flavor matrix.
The implementation of microencapsulation technologies requires capital investment and formulation adjustments, but the functional benefits it yields are transformative for both the manufacturer and the end consumer.
Citrus oils (rich in limonene) and mint flavors are notoriously susceptible to oxidative degradation. When oxidized, these flavors develop severe off-notes, often described as “terpeney,” “paint-like,” or “rancid.” By encasing these oils in an oxygen-impermeable matrix, such as a dense carbohydrate-protein complex, the shelf life of citrus-flavored powdered beverages or baked goods can be extended from a few weeks to up to 24 months.
During high-heat food processing applications—such as baking, extrusion, or ultra-high-temperature (UHT) pasteurization—volatile top notes are rapidly lost to evaporation, a phenomenon known as “flash-off.” Microencapsulation acts as a thermal shield. Specifically formulated high-melt lipid coatings or cross-linked protein matrices can withstand processing temperatures exceeding 200°C (392°F), ensuring the flavor remains locked within the food matrix until it is masticated by the consumer.
Modern food science demands that flavors not only taste good but behave intelligently. Microencapsulation enables controlled release, where the flavor is liberated based on specific environmental triggers. These triggers can be thermal (melting in the mouth), mechanical (chewing a piece of gum), pH-driven (releasing in the acidic environment of the stomach), or moisture-activated (hydration of a powdered beverage). This targeted delivery is increasingly relevant in functional foods, where the interaction between flavor release and human physiology is paramount. In fact, researchers are continually exploring The Role of Gut Microbiome in Flavor Perception: New Research Insights to understand how gastrointestinal release mechanisms can be optimized for maximum sensory impact.
As the functional food and nutraceutical markets expand, manufacturers are frequently working with botanical extracts, caffeine, vitamins, and plant-based proteins that carry inherently bitter or astringent profiles. Flavor microencapsulation is utilized here in a dual capacity: encapsulating the bitter compound itself to prevent interaction with the tongue’s taste receptors, or encapsulating an intense flavor masking agent that is co-released with the functional ingredient to neutralize the off-note at the exact moment of perception.
Flavor Protection
The selection of the appropriate wall material is perhaps the most consequential decision in the microencapsulation process. No single material possesses all the desired properties—excellent emulsification, film-forming ability, low viscosity at high solids, bland taste, and low cost. Therefore, manufacturers typically rely on complex blends of biopolymers.
Carbohydrates are the backbone of flavor encapsulation due to their high solubility, low viscosity, and excellent barrier properties against oxidation.
Proteins offer excellent emulsification and film-forming capabilities, though their use must be carefully managed to avoid allergenic concerns and higher costs.
For applications requiring high water resistance—such as flavors intended for liquid beverages or high-moisture baked goods—carbohydrate walls will prematurely dissolve. In these cases, lipid encapsulation (using hydrogenated vegetable oils, carnauba wax, or beeswax) is employed. The lipid matrix protects the flavor from moisture and only releases its cargo when the ambient temperature reaches the lipid’s specific melting point.
The physical transformation of a liquid flavor into a stable microcapsule relies on several highly engineered processing technologies. The choice of technology dictates the particle size, payload capacity, cost, and ultimately, the application suitability.

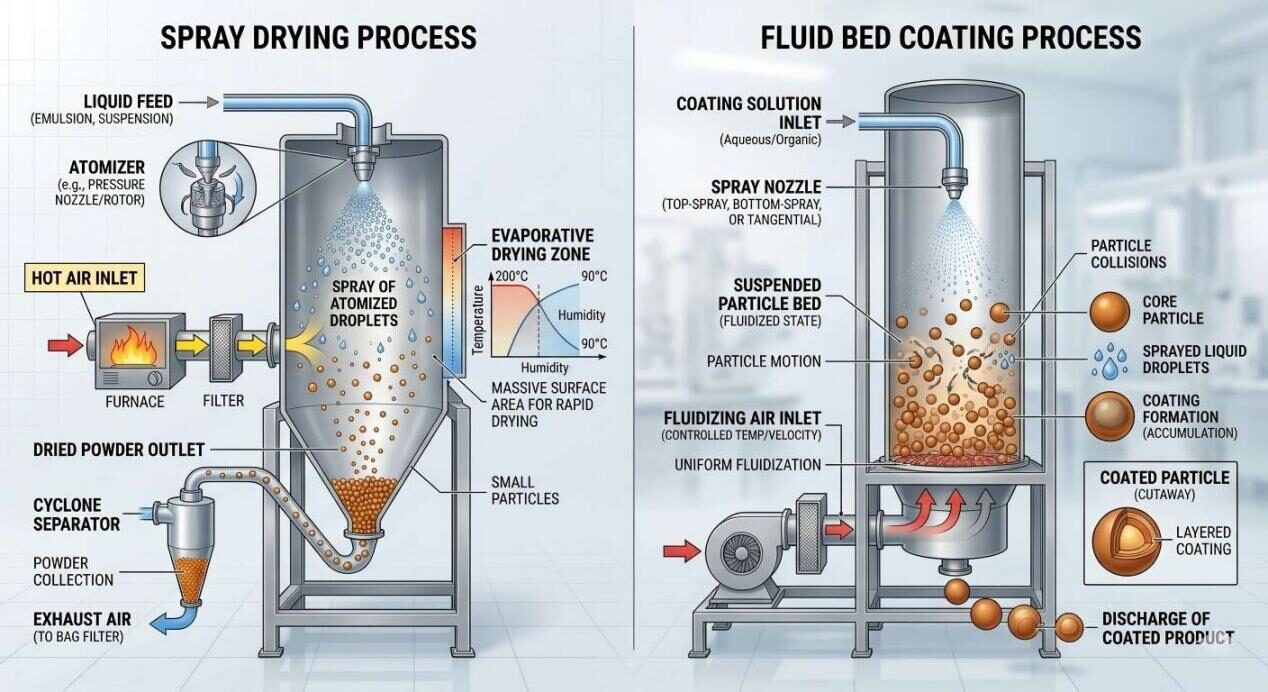

Spray drying is the most widespread and economical technique for flavor microencapsulation, accounting for the vast majority of powdered flavors globally.
Coacervation is a phase separation process that produces capsules with a true core-shell morphology, capable of exceptionally high flavor oil payloads (up to 80-90%).
Extrusion creates highly dense, glassy flavor matrices that offer unparalleled shelf life.
Rather than encapsulating from scratch, fluid bed technology is often used to apply a secondary protective layer to existing particles.
Processing Methods
The deployment of encapsulated flavors varies wildly depending on the physicochemical environment of the final food or beverage product.
In baking, the challenge is thermal stress. Standard liquid flavors often flash off entirely during the baking process. By using lipid-coated fluid bed particles, manufacturers can ensure that the flavor is protected through the dough-mixing and proofing stages. The lipid coating only melts when the internal temperature of the baked good reaches a specific threshold, releasing an intense burst of flavor just before the product finishes baking.
Similarly, in confectionery, particularly chewing gum, encapsulation is the secret to long-lasting flavor. A gum formulation will typically utilize a mixture of free liquid flavor for the initial burst, and spray-dried or coacervated flavors that are slowly released over 10-20 minutes of mastication due to the mechanical shear and hydration from saliva.
Beverage applications present a unique set of challenges, primarily centering around solubility, emulsion stability, and clarity. For clear beverages, microemulsions and nanoencapsulation are utilized to keep particle sizes below the wavelength of visible light (under 100 nm), preventing the “cloudy” or “ringing” effect (where oils separate and form a ring at the neck of the bottle). For dry beverage mixes (like instant coffees, protein powders, or meal replacements), spray-dried flavors are strictly required to ensure rapid dispersion and immediate flavor release upon reconstitution with water. Ensuring these characteristics requires intense analytical validation. Product developers frequently rely on Accelerating Flavor Discovery: Modern Techniques in Sensory Analysis to confirm that the encapsulated flavor performs identically to its liquid counterpart upon hydration.
The savory sector relies heavily on encapsulated spices, oleoresins, and reaction flavors. In topical snack seasonings, encapsulated flavors prevent the hygroscopic components (like soy sauce powders or yeast extracts) from clumping during storage. In the rapidly expanding plant-based meat sector, extrusion encapsulation allows meaty, umami-rich flavor profiles to survive the intense thermal extrusion processes used to texturize plant proteins. Furthermore, as food technology branches into avant-garde manufacturing, researchers are exploring how these robust microcapsules can be utilized when Developing Flavors for 3D-Printed Foods: The Next Frontier in Personalization, ensuring structural integrity during the layer-by-layer printing process.
Manufacturing microencapsulated flavors is a high-precision endeavor requiring rigorous quality control. The efficacy of an encapsulated powder is evaluated through several critical metrics.
The primary metric of success is Encapsulation Efficiency (EE), which calculates the percentage of flavor successfully trapped inside the matrix versus the amount left exposed on the particle’s surface. High surface oil (often referred to as “free oil”) is catastrophic; it acts as a primer for rapid oxidation and clumping. EE is determined by washing the powder with a non-polar solvent (like hexane) that extracts the surface oil without dissolving the carbohydrate shell, followed by a total oil extraction using steam distillation. A premium spray-dried flavor should exhibit an EE of over 95%.
To ensure the flavor profile remains authentic, Gas Chromatography-Mass Spectrometry (GC-MS) is utilized. A flavorist will compare the chromatogram of the original liquid flavor against the chromatogram of the extracted encapsulated flavor. They specifically look for the retention of highly volatile top notes (like acetaldehyde or ethyl butyrate). If the area under these specific peaks has diminished significantly, the spray drying parameters (inlet/outlet temperatures, feed rate) must be adjusted.
Stability is confirmed via accelerated shelf-life testing, where powders are stored in environmental chambers at elevated temperatures and humidity (e.g., 40°C and 75% RH) to simulate long-term storage in compressed timeframes. Concurrently, Differential Scanning Calorimetry (DSC) is used to measure the powder’s glass transition temperature (Tg). The Tg must consistently remain at least 15-20°C above the product’s expected storage temperature to guarantee structural integrity.
Finally, the materials used must adhere strictly to international regulatory frameworks. Wall materials must be recognized as safe for food consumption. In the United States, this means abiding by the Generally Recognized As Safe (GRAS) lists maintained by the FDA and the Flavor and Extract Manufacturers Association (FEMA). In Europe, ingredients must align with the guidelines set by the European Food Safety Authority (EFSA). Navigating these regulations is crucial, especially when substituting traditional materials with novel, clean-label alternatives.
The flavor industry is in a state of continuous innovation, driven by evolving consumer preferences and technological leaps.
While microencapsulation operates in the micrometer scale, nanoencapsulation brings the technology down to the nanometer scale (10 to 1,000 nm). Nanoparticles offer exponentially greater surface area, leading to improved solubility, higher bioavailability of functional flavors (like CBD or fat-soluble vitamins), and absolute clarity in liquid beverage formulations.
The modern consumer’s aversion to synthetic chemicals and highly processed ingredients has sparked a race to find sustainable, plant-based wall materials. Research is heavily focused on utilizing agricultural byproducts, such as apple pomace, citrus pectin, and oat beta-glucans, as functional encapsulants. Additionally, there is a push to replace chemically modified OSA starches with clean-label enzymatic or thermally treated starches.
The formulation of perfectly stable emulsions prior to spray drying historically relied on empirical trial and error. Today, artificial intelligence and machine learning algorithms are being trained on vast rheological and thermodynamic datasets to predict emulsion stability, optimal biopolymer ratios, and maximum encapsulation efficiencies before a single physical batch is mixed. This digital transformation is radically accelerating the speed at which bespoke encapsulated flavors can be developed and commercialized.
Microencapsulation represents the perfect synergy of food chemistry, thermodynamics, and process engineering. By transforming volatile, fragile liquids into stable, intelligent delivery systems, flavor manufacturers can overcome the most rigorous processing conditions and supply chain challenges. Whether it is ensuring a burst of citrus in a powdered sports drink, extending the shelf life of a baked confection, or masking the bitterness of a nutritional supplement, microencapsulation is the invisible technology that guarantees a premium sensory experience. As the food and beverage industry continues to evolve towards functional, personalized, and clean-label products, the mastery of advanced flavor encapsulation will remain an indispensable competitive advantage.
Quality Control
