A citrus soda can taste excellent at filling and still fail on the shelf. The classic visual defect is “ringing”: a pale or oily band that forms at the neck or upper liquid line as citrus oil droplets migrate upward and concentrate. Consumers read that ring as old, poorly mixed, or unsafe even when the beverage is microbiologically sound. For a brand, preventing ringing is therefore both a colloid-science problem and a quality-perception requirement.
The solution is not simply to add more emulsifier. Stable beverage emulsions require coordinated control of oil-phase composition, interfacial film, droplet-size distribution, continuous-phase density and viscosity, homogenization, water chemistry, thermal history, carbonation, and package life. This guide explains how to diagnose the mechanism, design the emulsion, validate it, and avoid regulatory mistakes.
Beverage Emulsions for Stable Citrus Soda
Stable Citrus Soda Emulsion
Ringing usually begins with creaming: citrus-oil droplets are less dense than the water phase, so buoyancy drives them upward. If the droplets remain small and discrete, a weak concentration gradient may be reversible. If they flocculate, coalesce, or grow by Ostwald ripening, upward migration accelerates and the concentrated oil phase can adhere at the neck, producing a persistent ring.
Stokes’ law provides a useful first approximation for dilute, spherical droplets: creaming velocity rises with the square of droplet radius, increases with density difference, and decreases as continuous-phase viscosity rises. Real beverages deviate from the ideal because droplets are polydisperse, interfaces interact, gums create non-Newtonian flow, and carbonation disturbs the system. Nevertheless, the equation makes one priority unmistakable: a small population of oversized droplets can dominate failure.
Creaming separates droplets by gravity but does not by itself merge them. A reversible cream layer may redisperse with gentle inversion, whereas a neck ring often indicates that creamed droplets have contacted the package surface or undergone further destabilization. The development team should document whether the defect is reversible, how rapidly it appears, and whether droplet size changes during storage.
Density matching can reduce the driving force, viscosity can slow migration, and smaller droplets move more slowly. These levers must be balanced against flavor release, mouthfeel, cloud intensity, and legal ingredient options. A very viscous soda may resist creaming yet fail consumer expectations for refreshment.
Flocculation occurs when droplets attract and form clusters while remaining individually intact. The cluster behaves hydrodynamically like a larger particle and creams faster. Causes include inadequate interfacial coverage, bridging by polymers, depletion interactions, ionic screening, and pH-dependent changes in biopolymer charge.
Measure more than the volume-weighted mean diameter. Averages can conceal a damaging coarse tail. Report D10, D50, D90, span, and preferably the fraction above a chosen risk threshold. Microscopy is valuable because a laser-diffraction result alone may not distinguish primary droplets from weak flocs unless sample preparation is controlled.
Coalescence occurs when the liquid film between approaching droplets drains and ruptures, allowing the oil phases to merge. Insufficient emulsifier, poor adsorption kinetics, processing after dilution, thermal damage, alcohol, low pH, and incompatible flavor components can weaken the interface. Once droplets coalesce, shaking may redisperse the oil temporarily but cannot recreate the original small-droplet distribution.
A robust interface must form quickly during homogenization and remain intact throughout dilution, pasteurization, carbonation, filling, transport, and storage. The most suitable emulsifier depends on ingredient declaration goals, flavor-oil composition, process, and market permissions.
Ostwald ripening is molecular transfer from smaller droplets, which have higher Laplace pressure, through the aqueous phase to larger droplets. Citrus oils can contain components with enough water solubility to make this mechanism important. Droplet growth can therefore occur even when droplets never collide.
An oil phase may be made more ripening-resistant by including permitted, low-water-solubility components that reduce the chemical potential driving transfer. The selection is product- and jurisdiction-specific. It must never be treated as a generic recipe because the regulatory status of density-adjusting or ripening-inhibiting materials varies substantially.
Why Droplet Size Prevents Citrus Soda Rings
Uniform Citrus Microdroplets
“Orange flavor” is not a physical specification. Record density, refractive index, composition, oxidation status, water solubility tendencies, and variability. A folded oil, terpeneless fraction, single-fold oil, and compounded flavor can behave differently under identical homogenization. Oxidized oil may introduce polar compounds that alter interfacial behavior as well as stale aroma.
Define whether the emulsion is intended to carry flavor only, provide cloud, or do both. A flavor emulsion optimized for rapid aroma release may not produce a stable, uniform cloud. Conversely, a heavy cloud emulsion can mute delicate top notes. Separate systems can sometimes offer better control, provided they remain mutually compatible.
Gum arabic has a long history in beverage emulsions because its proteinaceous fractions adsorb at oil–water interfaces while the polysaccharide portion provides steric stabilization. Modified food starches designed for emulsification can produce strong interfacial films and efficient processing. Other permitted proteins or hydrocolloid systems may work, but low-pH, thermal, ionic, or alcoholic conditions can change performance.
Evaluate emulsifier-to-oil ratio through a designed study. Too little leaves unprotected interface; too much may raise cost, viscosity, foam, or depletion-flocculation risk. Hydrate the emulsifier fully under controlled time, temperature, and shear before emulsification. Incomplete hydration is a common hidden cause of batch inconsistency.
Historically, brominated vegetable oil was used in small amounts as a stabilizer for fruit flavoring in some U.S. beverages. The FDA states that it was authorized at no more than 15 ppm to keep citrus flavoring from floating, but on July 3, 2024 the agency revoked the regulation allowing BVO in food; the rule became effective August 2, 2024, with a one-year compliance period. BVO therefore must not be presented as a current U.S. option.
Alternative density-adjusting materials have their own legal status, category provisions, specifications, and labeling requirements. Verify every target market before use. A globally distributed soda may require different formulas or a common-denominator system. Regulatory review belongs at concept stage, not after pilot validation.
High-pressure homogenization cannot reliably rescue a poor coarse emulsion. Add the oil phase slowly into the hydrated aqueous phase under sufficient high shear to form a uniform pre-emulsion. Control temperature because viscosity and interfacial adsorption are temperature-dependent. Avoid vortexing that draws excessive air; entrained oxygen accelerates citrus oxidation and can interfere with pump performance.
Track pre-emulsion droplet size or at least visual uniformity, temperature, mixing energy, addition time, and hold time. A reproducible pre-emulsion reduces the burden on downstream homogenization and makes scale-up more predictable.
Increasing homogenization pressure generally reduces droplet size until process limitations, recoalescence, temperature rise, or diminishing returns appear. Two passes can narrow a coarse tail, but additional passes are not automatically beneficial. The first and second-stage valve pressures should be evaluated as a system, with the second stage often used to disrupt clusters formed after the first-stage pressure drop.
Record product inlet temperature, outlet temperature, pressure, flow, passes, valve geometry, and sampling point. Compare the same batch before and after dilution because concentrate stability does not guarantee finished-beverage stability. A target such as “submicron” is too vague; define the complete distribution and its stability over time.
Homogenization creates new interface in milliseconds. Emulsifier must be available to adsorb before newly formed droplets collide and recoalesce. If the emulsifier hydrates slowly, has been damaged, or is tied up by other ingredients, more pressure can paradoxically produce little improvement.
Order of addition matters. Add salts, acids, preservatives, colors, or alcohol only after considering how they affect hydration and interfacial charge. A concentrate may be most stable when prepared under one ionic condition and diluted into the beverage later. Validate both the manufacturing concentrate and every intended dilution ratio.

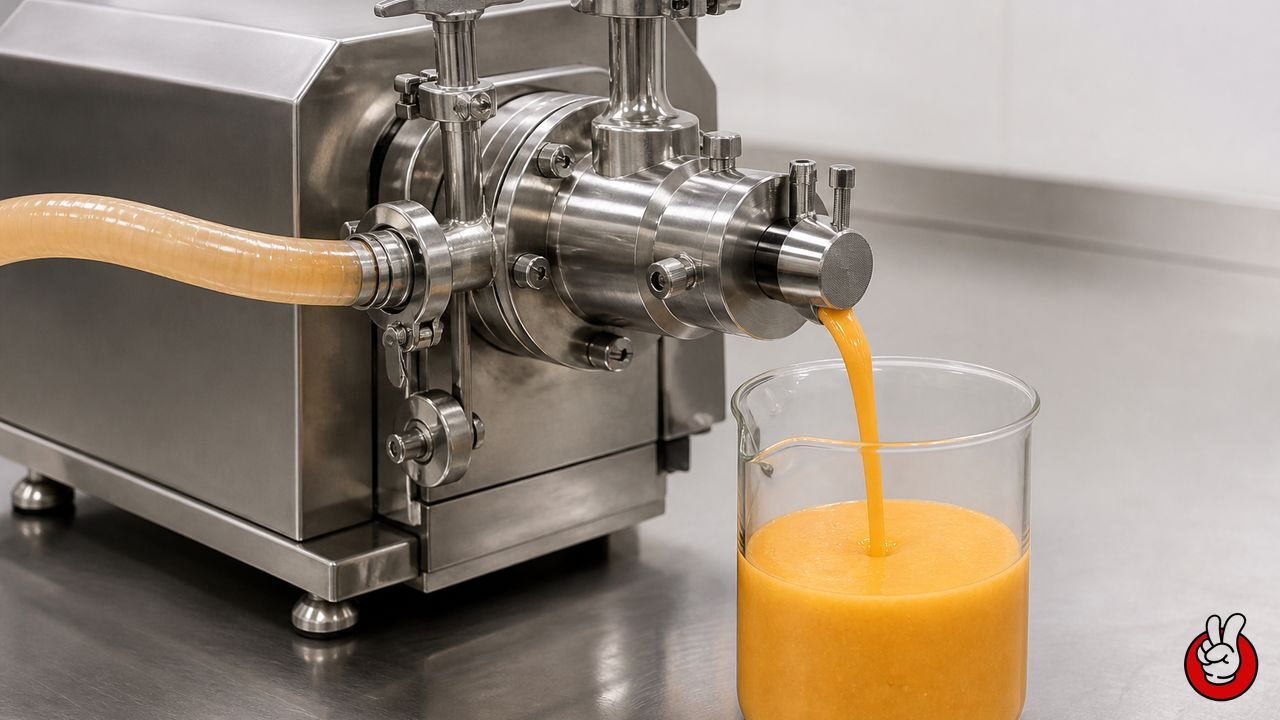

Homogenizing Citrus Beverage Emulsions
High-Shear Homogenization
Citrus sodas are acidic, and many include citrate salts, minerals, preservatives, or juice. Ionic strength can compress electrostatic repulsion, while pH changes the ionization of protein-containing emulsifiers. Calcium and magnesium from process water or juice may bridge anionic polymers. Water quality therefore belongs in the emulsion specification.
Challenge testing should include the highest realistic mineral and juice loads, not only nominal targets. If different factories use different water sources, define treatment requirements or test each source. A concentrate that passes in deionized laboratory water may ring quickly in a hard-water plant.
Sucrose increases continuous-phase density and viscosity, both of which can slow creaming. Reducing sugar can therefore reveal instability even if the oil and emulsifier remain unchanged. High-intensity sweeteners replace sweetness but not density or viscosity. A zero-sugar conversion must be treated as a new colloidal system, not a simple sweetener substitution.
Body agents can restore some physical properties, but they may also create flocculation or undesirable mouthfeel. Use rheology at low shear rates relevant to gravitational separation, not only a single high-shear viscosity number. Sensory panels should confirm that any stabilization strategy still produces a crisp soda.
Carbon dioxide dissolves to form carbonic acid and lowers pH modestly. Gas breakout at warm spots, rough surfaces, or pressure changes can carry droplets upward. Counter-pressure filling, package geometry, headspace, and line conditions influence the visible result. Evaluate samples taken across the production run, not only from the laboratory carbonator.
A ring located exactly at the maximum liquid line can indicate package wetting and repeated contact during vibration. Examine bottle surface energy, neck geometry, closure application, and transport simulation. The emulsion may be acceptable in one package and unacceptable in another.
At minimum, monitor droplet-size distribution, microscopy, pH, viscosity or flow curve, turbidity or cloud, color, density, and sensory quality. Measure fresh concentrate, diluted beverage, post-process beverage, and stored packages. Centrifugation and analytical centrifugation can rank samples, but accelerated tests must be correlated with real-time behavior before they are used as shelf-life claims.
Track creaming index or separation height in standardized containers. Photograph samples under fixed lighting and geometry. Automated image analysis can reduce subjectivity. Set alert and reject limits based on consumer-visible change and the validated relationship to later ringing.
Store packages upright and on their sides at intended and elevated temperatures. Include cold–warm cycles if distribution may fluctuate. Freeze–thaw testing is relevant only if exposure is plausible; it can be excessively destructive and mislead development when treated as a universal requirement. Simulate vibration and package handling because weakly creamed droplets can be driven onto the neck surface.
Oxidation and physical stability should be assessed together. A formula may remain uniformly cloudy while developing oxidized peel notes. Monitor dissolved oxygen, headspace oxygen, limonene oxidation markers where feasible, and sensory descriptors such as turpentine, cardboard, or cooked citrus.
If D90 rises while D50 changes little, investigate a coarse tail, flocculation, or intermittent processing. If all percentiles rise, suspect coalescence or Ostwald ripening. If size remains stable but a concentration gradient forms, address creaming velocity, density difference, viscosity, or package interaction. If the emulsion destabilizes immediately after dilution, examine ionic shock, pH, and order of addition.
This mechanism-first approach prevents random ingredient escalation. It also shortens supplier conversations because the team can describe the failure quantitatively rather than saying only that the soda “looks separated.”
Specify whether the soda should be crystal clear, lightly opalescent, or uniformly cloudy. Define acceptable ring width, sediment, cream layer, and redispersibility at end of shelf life. Establish package type, fill height, storage orientation, and lighting. A visual specification without a package context is incomplete.
Related application insights can be found in CUIGUAI’s guide to clear fruity protein waters and its overview of food-grade flavors for beverages. These are useful reminders that solubility, aroma stability, and appearance must be designed together.
Prepare a factorial screen of oil-phase variants, emulsifier-to-oil ratios, and homogenization conditions. Hold finished beverage composition constant. Measure the full droplet distribution and perform short accelerated screens, then advance only distinct, promising systems to real-time testing.
If the flavor direction includes dark fruit or cola notes, test interactions in the final matrix. A cola beverage flavor may bring different solvent and aroma chemistry than a citrus oil. A cranberry juice flavor can introduce a tart sensory context in which cloud and color expectations differ. Product pages are starting points; supplier application trials remain essential.
Lab and plant rotor–stator mixers differ in tip speed, gap, pumping, recirculation, and residence-time distribution. High-pressure homogenizers differ in valve design and heat rise. Match relevant process parameters rather than copying rpm or pressure alone. Sample at multiple times to detect start-up and shutdown deviations.
Document acceptable ranges and alarms. A single pass through a partially blocked valve can create a coarse fraction that later becomes a ring. In-line pressure and temperature records, preventive maintenance, and sampling plans are part of formulation robustness.
Hydrocolloids and emulsions can complicate cleaning. Confirm that the process can be cleaned and sanitized without residues in dead legs or valves. Product safety requires validated controls appropriate to composition, process, package, and distribution. Physical stability testing never substitutes for microbiological validation.
Check pre-emulsion quality, D90, emulsifier hydration, oil-to-emulsifier ratio, dilution shock, and package wetting. Immediate failures are often caused by a coarse tail or gross incompatibility rather than slow ripening.
Investigate viscosity loss, accelerated molecular transport, interfacial weakening, and oil solubility. Compare size distributions before and after warm storage. Reformulation may require a more robust interface or oil phase, not merely higher room-temperature viscosity.
Excess emulsifier or a highly retentive interface can reduce volatile release. Compare headspace and sensory time-intensity at equal flavor dosage. Reduce unnecessary cloud oil, separate flavor and cloud functions, or adjust the aroma architecture so top notes release appropriately.
The removed sucrose changed density and viscosity. Recalculate the density difference, measure low-shear rheology, and test permitted body-building strategies. Do not assume that matching Brix with another soluble solid reproduces the same sensory or physical system.
The FDA’s 2024 revocation of BVO is a concrete reminder that legacy beverage practices can change. Regulatory status must be reviewed continuously, with market-specific formulas controlled through change management. Supplier statements should identify the intended food category, use level, purity specification, and jurisdictions covered.
Label review must include emulsifiers, modified starch declarations, preservatives, colors, flavor terminology, and any clouding or weighting components. “Natural flavor” status is not inferred from consumer perception; it depends on the applicable legal definition and source. Claims such as “clean label” are not substitutes for a jurisdictional compliance assessment.
Ringing is the visible package defect. Creaming is one mechanism that can concentrate droplets near the top. Ringing may also involve adhesion, flocculation, or coalescence, so diagnosis should include droplet-size and package observations.
No single size guarantees stability. Distribution width, density difference, viscosity, interface, oil solubility, temperature, and package life all matter. Control the coarse tail and verify in the finished drink.
No. More emulsifier may help when interfacial coverage is insufficient, but it can also increase cost, foam, viscosity, or depletion interactions. Identify the failure mechanism first.
No. FDA revoked the regulation allowing BVO in food in July 2024. Formulators must use compliant alternatives and confirm requirements in every market.
At least through the intended commercial shelf life in the final package, supported by validated accelerated methods. The exact program depends on product, process, package, and distribution risk.
Preventing citrus-soda ringing requires control of the whole colloidal system. Small, narrowly distributed droplets; a resilient interface; a legally compliant oil phase; suitable density and rheology; low oxygen; controlled homogenization; and package-relevant shelf-life testing work together. When the team diagnoses mechanism before changing ingredients, stability improves faster and flavor quality is easier to protect.
Shelf-Life QC for Ring-Free Citrus Soda
Citrus Soda QC Lineup
